Podrobný popis

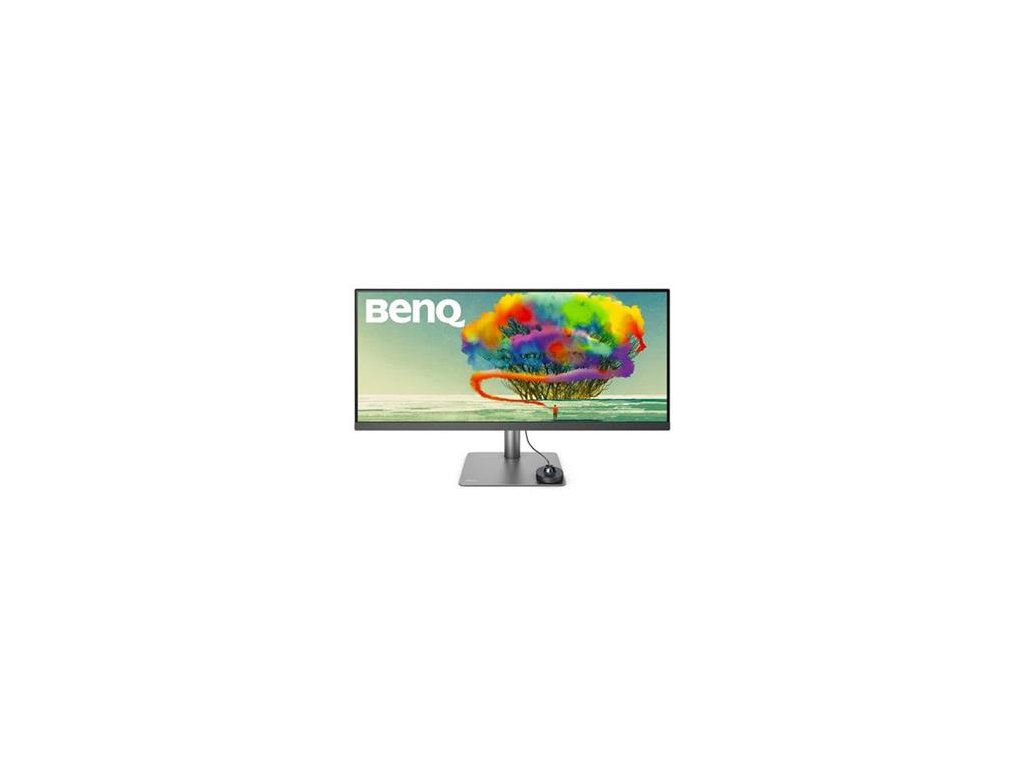

34 palcový designový monitor, WQHD, P3, HDR | PD3420Q
- 34 ”2K QHD 21: 9 Ultrawide IPS LED monitor
- 100% sRGB a 98% P3 barevné prostory
- Certifikace VESA DisplayHDR 400 - pro lepší kontrast, barvy a detaily
Screen Size 34"
Resolution (max.) 3440x1440
All Specifications
Display
Screen Size 34
Panel Type IPS
Backlight Technology LED backlight
Resolution (max.) 3440x1440
Brightness
350cd/m2 (typ.)
400cd/m2 (HDR Mode)
Native Contrast(typ.) 1000:1*
Viewing Angle (L/R;U/D) (CR>=10) 178/178
Response Time 5ms (GtG)
Refresh Rate 60Hz
Aspect Ratio 21:9
Display Colors 1.07 billion colors
Color Gamut DCI-P3 98%/Display P3 98%/sRGB 100%
Display Area(mm) 799.80 x 334.80
Pixel Pitch (mm) 0.2325
PPI 109
Color Bit 10bits
Audio
Built-in Speaker 2.5Wx2
Headphone Jack Yes
Monitor
Product Color Dark Gray
Picture Mode DCI-P3/Display P3/HDR/sRGB/Rec. 709/CAD/CAM/Animation/Low Blue Light/Darkroom/M-book/DICOM/User
Gamma 1.8 - 2.6, sRGB
OSD Language: Arabic, Simplified Chinese, Traditional Chinese, Czech, Deutsch, English, French, Hungarian, Italian, Japanese, Korean, Dutch, Polish, Portuguese, Romanian, Russian, Spanish, Swedish
PIP/PBP Yes (PIP/ PBP/ PBPx4/ PBP 5:9)
HDCP 2.2
VESA Wall Mount Yes
AMA Yes
Display Screen Coating Anti-Glare
Eye Care
Flicker-free Technology Yes
Low Blue Light Yes
Professional
Delta E <= 3 (average)
Animation mode Yes
CAD/CAM mode Yes
KVM Switch Yes
DualView Yes
Darkroom mode Yes
Auto Pivot Yes
Hotkey Puck G2 Yes
Factory Calibration Report Yes
Connectivity
HDMI HDMI (v2.0)x2
DisplayPort DisplayPort (v1.4) x1
USB 3.1 Hub 4x (4xdownstream, 1xupstream)
USB Type-C 1x (Power delivery 65W, DP alt mode, Data)
Power
Voltage Rating 100 - 240V
Power Supply Built-in
Power Consumption (on mode.) 185W
Power Consumption (based on Energy Star) 50W
Power Consumption (stand by mode) 0.5W
Power Consumption (sleep mode) 0.5W
Dimension and Weight
Dimensions (HxWxD mm) (w/o Base) 371.5 x 825.8 x 87.4
Dimensions (HxWxD mm)
H: 595.35 x 825.8 x 244.34
L: 445.35 x 825.8 x 244.34
CTN Dimensions (HxWxD mm) 654x990x214
Net Weight (kg) (without stand) 6.9 kg
Net Weight (kg) 9.3 kg
Gross Weight (kg) 13.7 kg
Tilt (down/up) -5° - 20°
Swivel (left/right) 30°/30°
Height Adjustment (mm) 150
Software
Display Pilot Yes
Compatibility
Mac Compatible Yes
Windows® Compatible: Windows®10/Windows®7/Windows®8/Windows®8.1
Solidworks Yes
Certification
Verified by CalMAN Yes
Pantone Validated Yes
*If you’d like to have highest contrast ratio, go to: Picture Mode > User Mode
